“10,000 lb Capacity Commercial Grade BasePlate Lift” has been added to your cart. View cart
Click to enlarge
16 Ton Ram Splitter Horizontal Electric Log Splitter (H16-4)
16 Ton Ram Splitter Horizontal Electric Log Splitter (H16-4) $801.00
Back to products
1.5 HP Tire Changer Wheel Balancer Machine Combo Rim Clamp 14″-28″
1.5 HP Tire Changer Wheel Balancer Machine Combo Rim Clamp 14″-28″ $674.10

10,000 lb Capacity Commercial Grade BasePlate Lift

$1,349.10

90 in stock

Compare
Add to wishlist
10 People watching this product now!
Share:
  • Description
  • Shipping & Delivery
  • Return & Refund
Description

The Atlas® BP10000X commercial grade 2 post baseplate lift is built for those customers who want to lift heavy vehicles in a low ceiling garage. The Atlas® BP10000X incorporates the popular single point lock release columns have a middle welded support gusset that adds extra strength to the oversized columns. If you need to lift a one ton dually or a Smart Car and only have an 11 foot ceiling, this is the lift for your shop.

  • 10,000 lb. Capacity
  • Commercial Grade
  • Baseplate, Open-Top Style Lift
  • Overall Height: 111 7/8″ (9′ 3 7/8″)
  • Single-Point Lock Release Allows Both Columns To Be Disengaged Simultaneously
  • Super-Symmetric Arms
  • Dual Hydraulic Chain-Drive Cylinders Made to ANSI Standard
  • Welded Support Gussets Increase Column Strength.
  • Automatic Arm Restraints
  • Powder Coat Finish
  • Free 12 Piece Truck Adapter Set
  • Shipping Weight: 1,640 LBS.
  • 5 yr Structural – 2 yr Hydraulic Warranty – Parts Only
Atlas® ATTD-BP10000X Specifications
Capacity 10,000 LB.
Overall Height 111 7/8″ (9’ 3 7/8″)
Overall Floor Width 139 1/8″ (11’ 7 1/8″)
Outside Column to Outside Column 134 1/2″ (11’ 2 1/2″)
Maximum Lift Height (Without Adapters) 77 3/8″
Maximum Lift Height (With Adapters) 86 3/8″
Minimum Arm Height 4″
Inside Column 112 1/4” (9’ 4 1/4”)
Drive Thru 101 1/4” (8’ 5 1/4”)
Column Size 9 1/2″ x 11″
Column Thickness of Steel 6mm
Base Of Lift 17 1/2″ x 21 1/2″
Motor/Electrical Requirement 220 volt single (1) phase.
A 30 amp breaker is recommended
Oil Requirement 3-5 Gallons AW32/AW46 (NOT INCLUDED)
Shipping Weight 1,640 LBS.
Adapter Heights 4 Each 2”, 3”, 6”
Arm Hole/Adapter Peg Size 1.5”
Requires a minimum of 4″ of concrete with a 3000 psi. rating
WEIGHT 1640 lbs
BRAND Atlas
Shipping & Delivery
WhatsApp Image 2025-09-02 at 5.06.12 AM

All products are free delivered to the United States and frequently delivered within 5 - 8 business days via DHL, UPS, or USPS Express ( Monday To Friday ).

We only ship to the United States.

Free Shipping All Over In United States.

TRANSIT, HANDLING & ORDER CUT OFF TIME:-

  • Order Cut Off time: 6 pm (GMT-08:00) Pacific Standard Time (Los Angeles)
  • Order handling time: 1 - 2 Business Days ( Monday To Friday )
  • Transit time: 5 - 8 Business days ( Monday To Friday ) Economy Shipping
    In case of any delay, we will instantly contact you.

TRACKING:-

  • Once your order has been dispatched, your order comes with a tracking number allowing you to track it until it is delivered to you.
  • When your order has shipped, you will get an email from us that contains a tracking number you can use to check its status.
  • Please allow 48 hours for the tracking info to become available.
  • Please make sure, the email you provided us is accurate and correct, or you will not receive the notification.

CANCELLATIONS:-

  • If you change your mind and want to cancel your order before you have received it, we can accept cancellations at any time before the order has been dispatched.
  • If an order has already been processed, please refer to our refund policy.

INCORRECT ADDRESS:-

If you put an incorrect address during checkout and the product returns to our store after delivery, then we will not be responsible for the loss of your package.

Return & Refund
We have a 30-day return policy, which means you have 30 days after receiving your item to request a return. To be eligible for a return, your item must be in the same condition that you received it, unworn or unused, with tags, and in its original packaging. You’ll also need the receipt or proof of purchase. To start a return, you can contact us at info@bhautorepairs.com. Please note that returns will need to be sent to the following address: 1176 Green St, Iselin, NJ 08830, USA If your return is accepted, return shipping labels will be in a box, well as instructions on how and where to send your package. Items sent back to us without first requesting a return will not be accepted. You can always contact us for any return questions at info@bhautorepairs.com Damages and issues Please inspect your order upon reception and contact us immediately if the item is defective, or damaged or if you receive the wrong item so that we can evaluate the issue and make it right. Exceptions / non-returnable items Certain types of items cannot be returned, like perishable goods (such as food, flowers, or plants), custom products (such as special orders or personalized items), and personal care goods (such as beauty products). We also do not accept returns for hazardous materials, flammable liquids, or gases. Please get in touch if you have questions or concerns about your specific item. Unfortunately, we cannot accept returns on sale items or gift cards. Exchanges The fastest way to ensure you get what you want is to return the item you have, and once the return is accepted, make a separate purchase for the new item. European Union 14-day cooling off period Notwithstanding the above, if the merchandise is being shipped into the European Union, you have the right to cancel or return your order within 14 days, for any reason and without a justification. As above, your item must be in the same condition that you received it, unworn or unused, with tags, and in its original packaging. You’ll also need the receipt or proof of purchase. Refunds We will notify you once we’ve received and inspected your return and let you know if the refund was approved or not. If approved, you’ll be automatically refunded using your original payment method within 10 business days. Please remember that it can take some time for your bank or credit card company to process and post the refund, too. If more than 15 business days have passed since we’ve approved your return, please contact us at info@bhautorepairs.com.

Related products

-15%
11 ft.W x 8 ft. D Plastic Portable Storage Shed
11 ft.W x 8 ft. D Plastic Portable Storage Shed
Compare

11 ft.W x 8 ft. D Plastic Portable Storage Shed

Explore All
$529.00 Original price was: $529.00.$449.65Current price is: $449.65.
About This Product This garage is the ideal compact storage solution for ATVs, lawn and garden equipment, small tractors, patio
Add to wishlist
Add to cart
Quick view
-15%

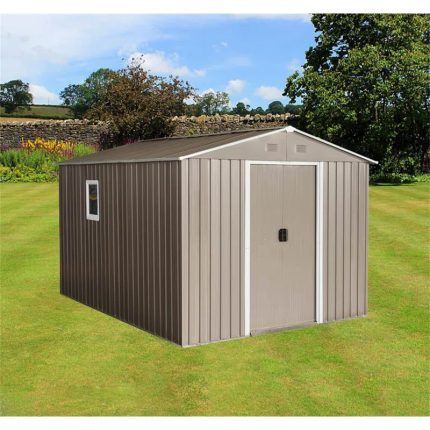

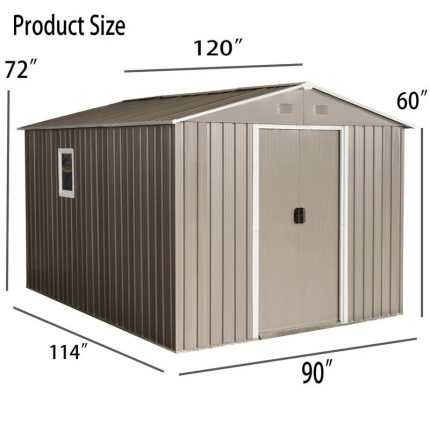

10ft. W x 7ft. D Metal Storage Shed
10ft. W x 7ft. D Metal Storage Shed
Compare

10ft. W x 7ft. D Metal Storage Shed

Explore All
$539.00 Original price was: $539.00.$458.15Current price is: $458.15.
About This Product Outdoor Storage Shed with Window Is Made of Metal,Perfect for Patio, Garden and Backyard What’s Included? Built-In
Add to wishlist
Add to cart
Quick view
-15%
10’ office container with AC
10’ office container with AC
Compare

10’ office container with AC

Explore All
$1,430.00 Original price was: $1,430.00.$1,215.50Current price is: $1,215.50.
Check out this 10’ office for a local school. Modifications: Lined with 50mm cool room panel.Vinyl floor.PA door and window.Electrical
Add to wishlist
Add to cart
Quick view
-15%
Stratford-14x10-1
14×10 Stratford Traditional Steel Pergola With Sail Shade Soft Canopy
Compare

14×10 Stratford Traditional Steel Pergola With Sail Shade Soft Canopy

Explore All
$998.00 Original price was: $998.00.$848.30Current price is: $848.30.
Step up your outdoor space with our Stratford steel pergola. Combining classic style with modern resilience, this sophisticated pergola, finished
Add to wishlist
Select options
Quick view
-15%
100 Quart Patio Cooler - Acacia
100 Quart Patio Cooler - Acacia
Compare

100 Quart Patio Cooler – Acacia

Explore All
$209.00 Original price was: $209.00.$177.65Current price is: $177.65.
When it’s time to call it a night, tuck your cooler under the included waterproof cover. Make every outdoor gathering
Add to wishlist
Add to cart
Quick view
-15%
10ft. W x 7ft. D Metal Storage Shed
10ft. W x 7ft. D Metal Storage Shed
Compare

10ft. W x 7ft. D Metal Storage Shed

Explore All
$539.00 Original price was: $539.00.$458.15Current price is: $458.15.
About This Product Outdoor Storage Shed with Window Is Made of Metal,Perfect for Patio, Garden and Backyard What’s Included? Built-In
Add to wishlist
Add to cart
Quick view
Compare

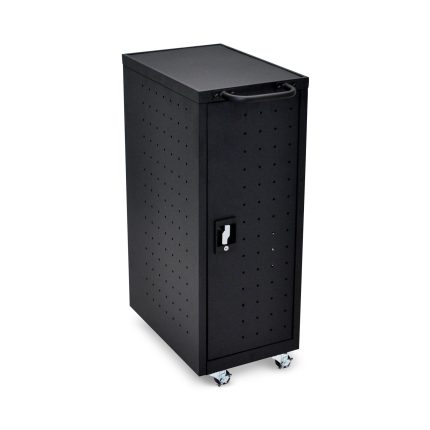

12 Laptop Chromebook Charging Cart By Luxor

Explore All
$700.00
At only 14″ wide, this slender charging cart provides a space-saving solution for keeping laptops and Chromebooks fully charged and
Add to wishlist
Add to cart
Quick view
-15%
DelRay_14x10_Pergola_6936b4d9-21b0-4aaa-b8b1-4706a4ea9248

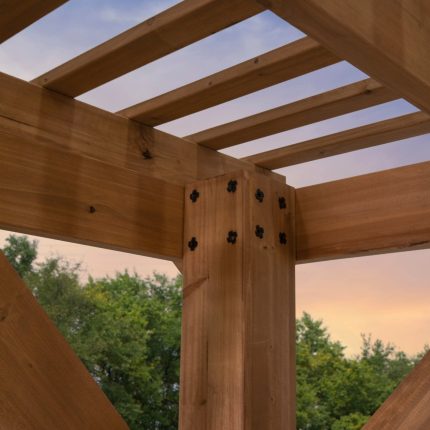

14×10 Delray Pergola
