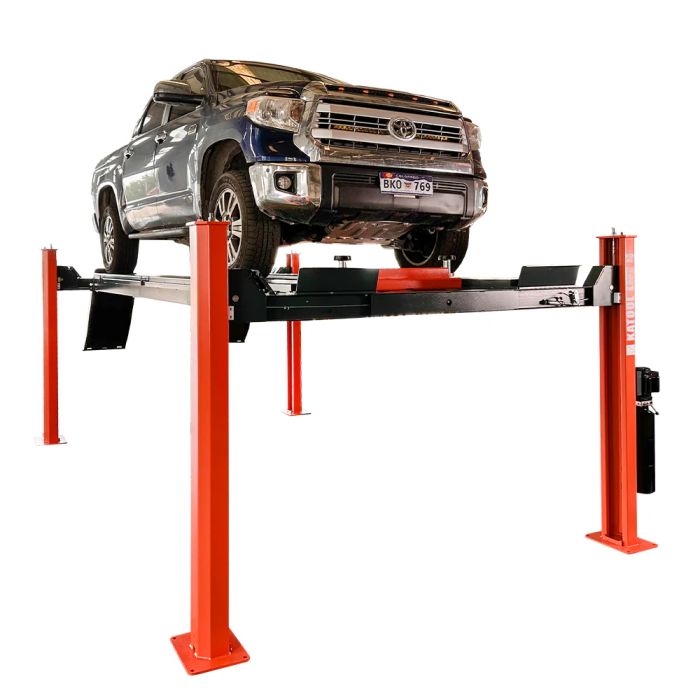

The 4H150 Heavy Duty 4-Post Alignment Lift by KaTool can easily handle up to 15000 lbs. Built with durability in mind, this lift is perfect for heavy-duty alignment tasks. Experience smooth and precise alignments with this professional-grade tool.
Key Features:
- 15000lbs lifting capacity.
- CE Approved and Certified. It has adopted the 115% dynamic loading capacity standard and was 150% static loading capacity tested.

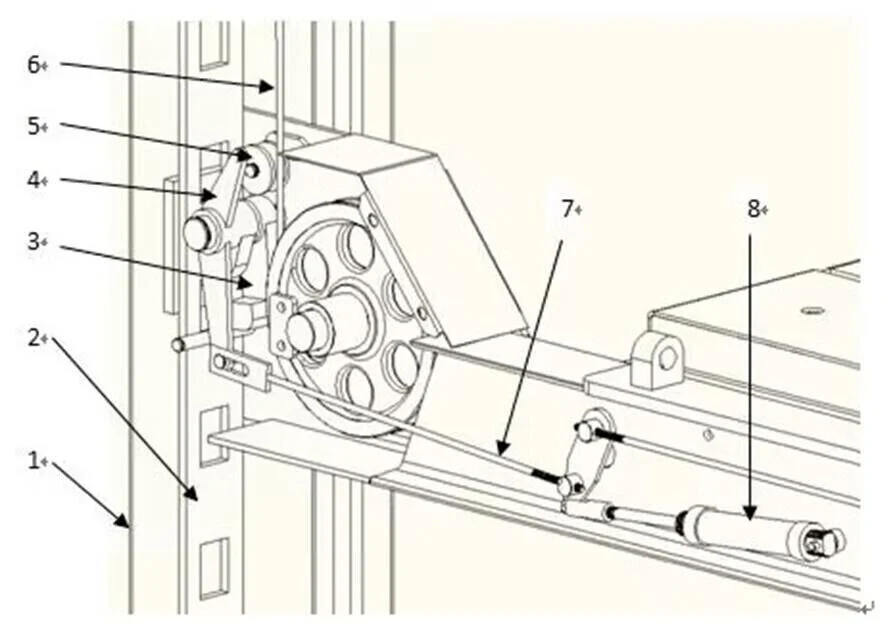

- Spring-loaded safety locks automatically engage continuously as the lift is raised. For added safety, a secondary lock system acts as a slack-cable device to engage in the unlikely event of cable failure.
- Equipped with multiple adjustable height locking positions for variable height positioning. A convenient push-button pneumatic safety lock control releases all four independent safety locks simultaneously.
- Power side column can be installed at both sides, front or rear.
- Non-skid diamond texture ramps and non-slip coated runways.
- One 6000 lb rolling jack is included.
- High-quality hydraulic system, 3KW motor with 220V/60HZ/1PH or 110V/60HZ/1PH (Optional)

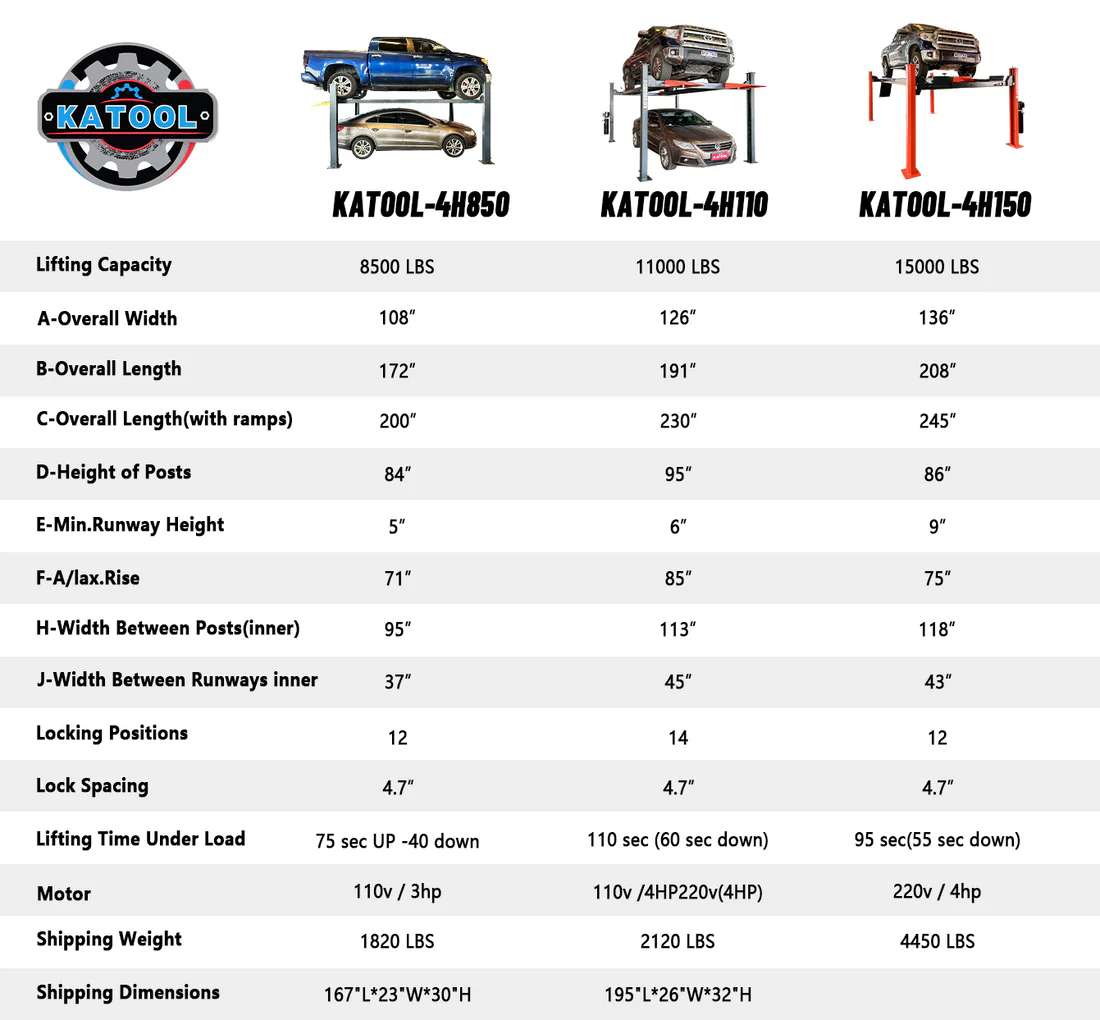

Specifications:
| Lifting Capacity | 15000 lbs |
| Max. Lifting Height | 75″/1905mm |
| Lifting Time | 95s Up / 55s Down |
| Height of Posts | 86″/2184mm |
| Width Overall | 136″/3454mm |
| Length Overall | 208″/5283mm |
| Overall Length(with ramps) | 245″/6223mm |
| Min. Runway Height | 9″/228mm |
| Motor | 220VAC/4PH |
| Net Weight | 4450lbs |
