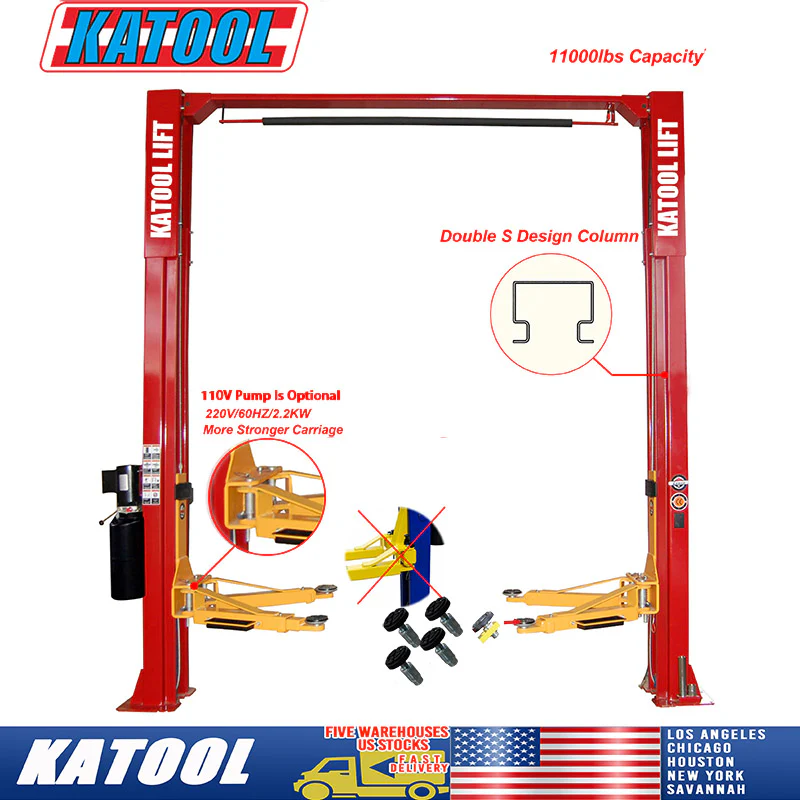

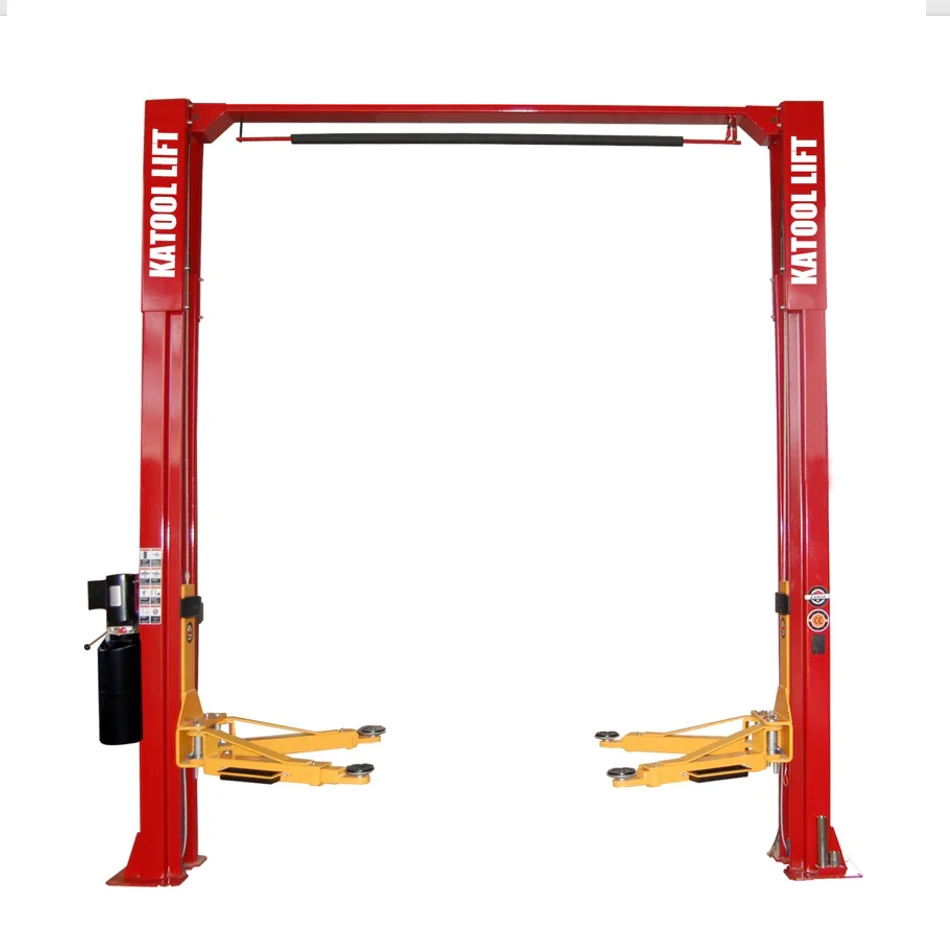

This M110 two-post clear floor vehicle lift by KaTool can handle up to 11,000 lbs, making it a reliable choice for heavy vehicles. With a clear floor design, it allows for easy access and maintenance. Trust this lift to efficiently and safely lift your vehicles.
Key Features:
- 11000lbs lifting capacity.
- CE Approved and Certified. It has adopted the 115% dynamic loading capacity standard and was 150% static loading capacity tested.
- Symmetric clear-floor design.
- Manual safety release from two sides.

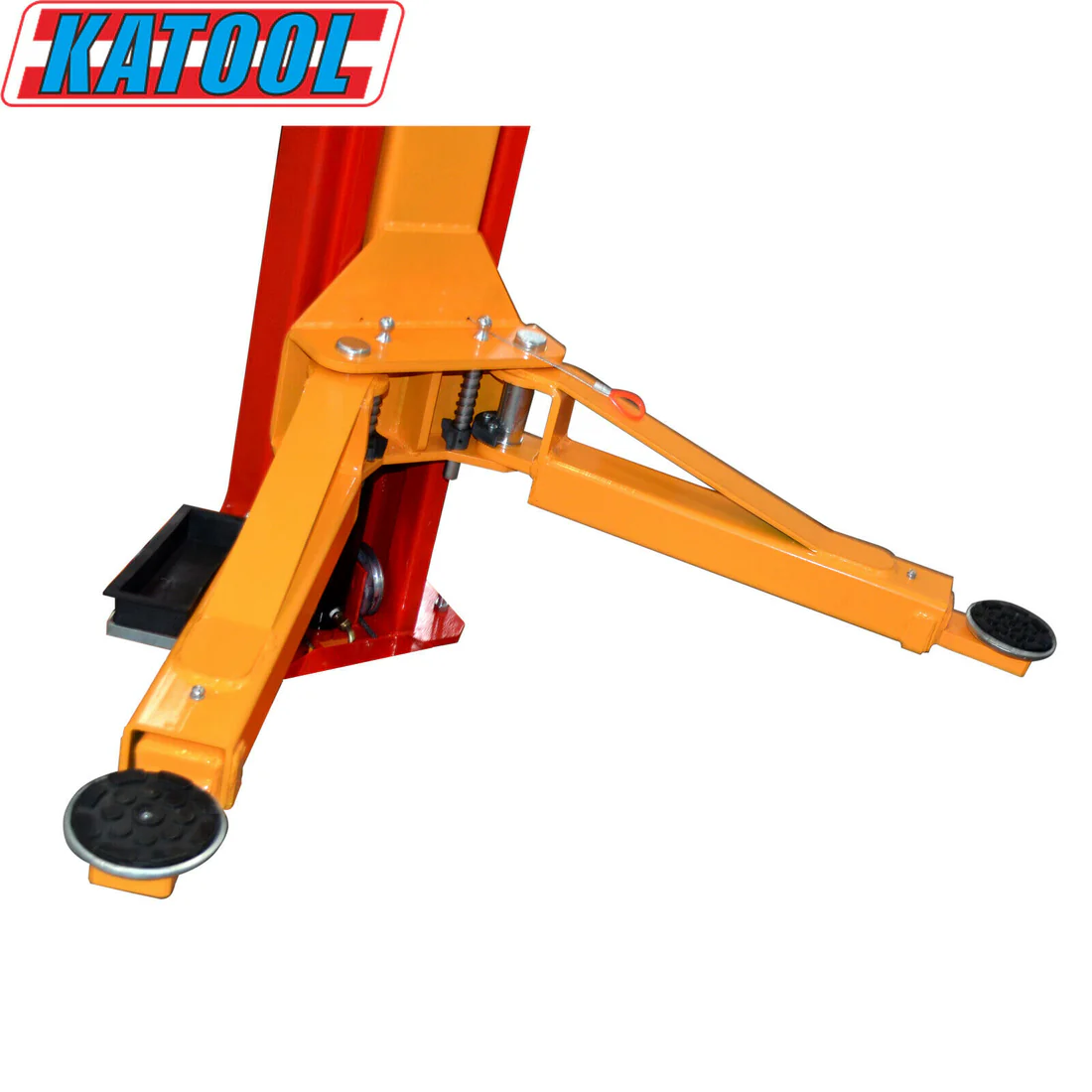

- Symmetric arm.

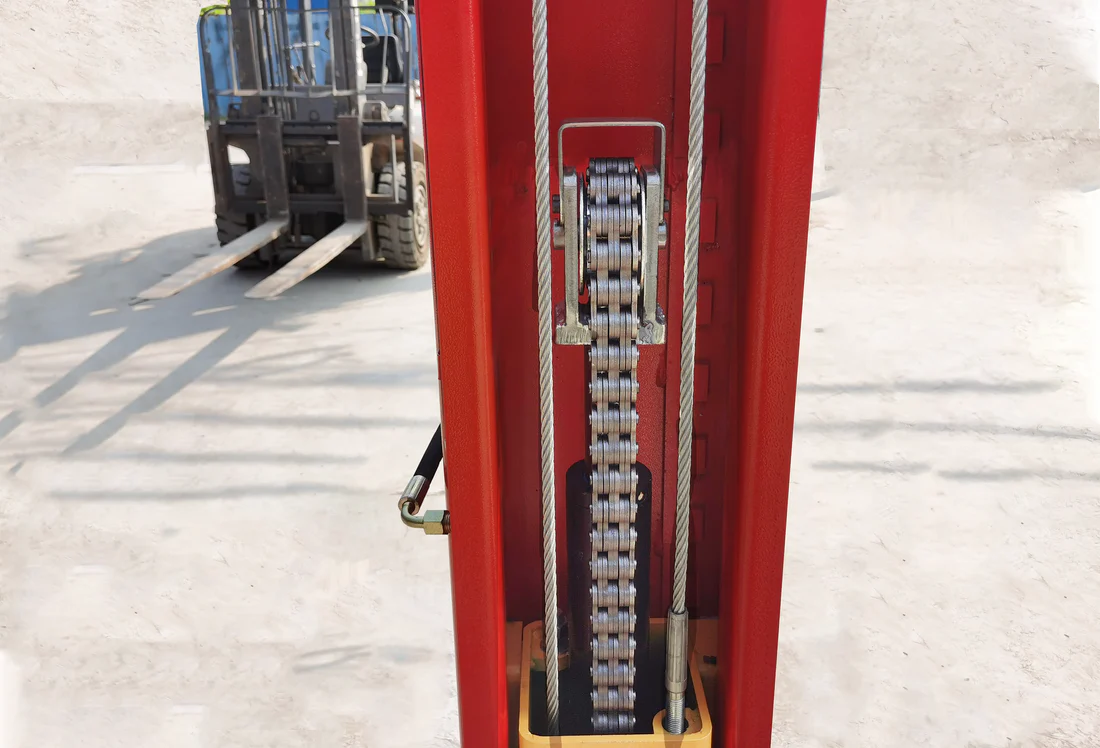

- Dual Hydraulic Chain-Drive Cylinders.
- Rubber pad door opening protection.
- It comes with extension support adaptor sets of +30mm and +120mm.
- Added overhead safety shutoff bar.
- Feet-protection safety guardrails with a toolbox.
- Top-level hydraulic system with 220V/60HZ/1PH and 110V/60HZ/1PH(Optional).

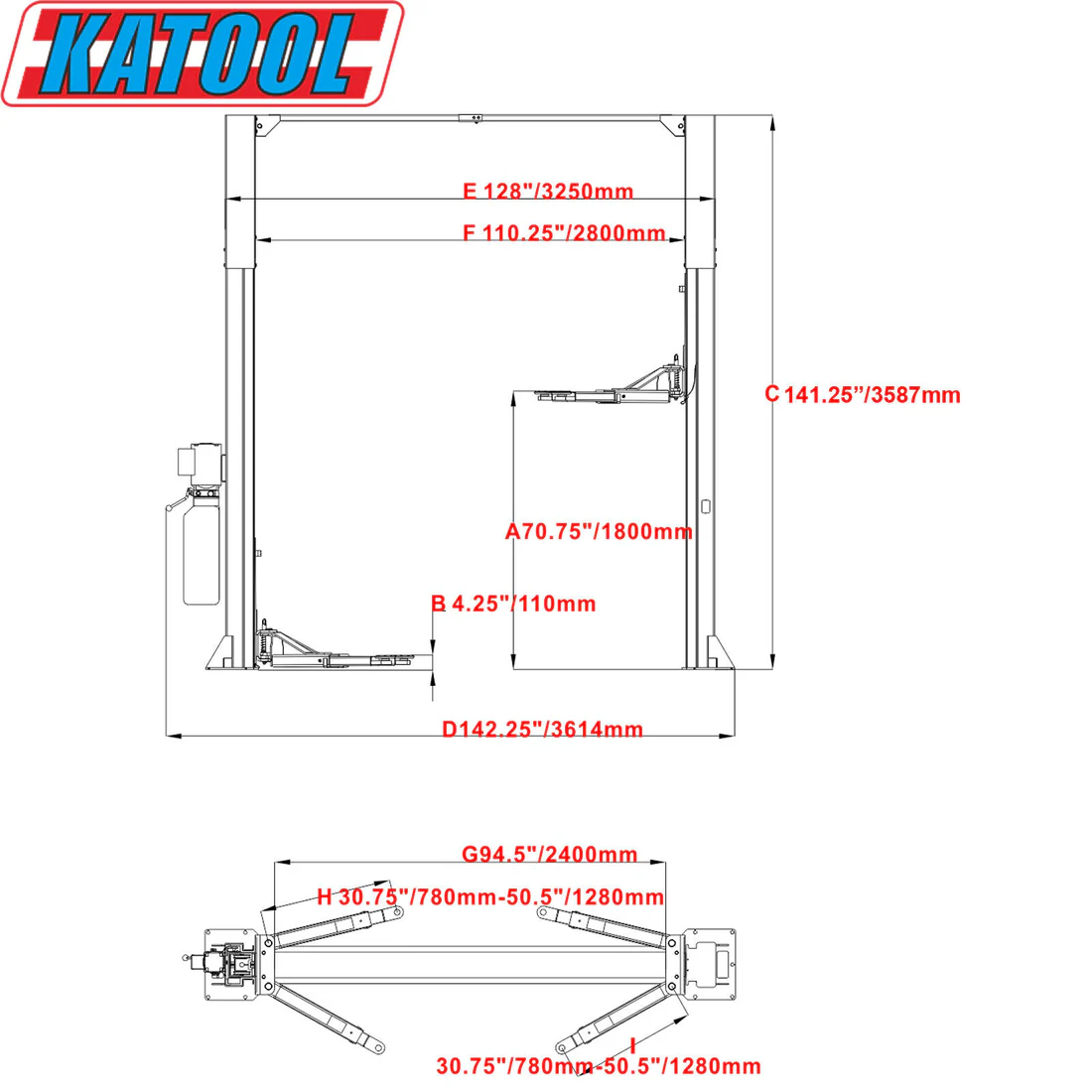

Specifications:
| Lifting Capacity | 11000lbs.(5000KG) |
| Max. Lifting Height | 70.75″/1800mm |
| Min. Height | 4.25″/110mm |
| Height Overall | 141.25″/3587mm |
| Width Overall | 142.25″/3614mm |
| Outside Column | 128″/3250mm |
| Inside Column | 110.25″/2800mm |
| Dirve-Thru Clearance | 94.5″/2400mm |
| Front Arm Reach (Min) | 30.75″/780mm (2 stages) |
| Front Arm Reach (Max) | 50.5″/1280mm (2 stages) |
| Rear Arm Reach (Min) | 30.75″/780mm (2 stages) |
| Rear Arm Reach (Max) | 50.5″/1280mm (2 stages) |
| Motor | 220VAC/60HZ/1PH/2.2KW |
| Net Weight | 1367lbs/620KG |
